The (r)evolution of MLS® Laser Therapy

M-Hi MLS® Therapy Laser

The M-Hi is a high power MLS Therapy Laser offering fast and effective treatments without compromising patient comfort and safety.

The (r)evolution of MLS® Laser Therapy

M-Hi MLS® Therapy Laser

The M-Hi is a high power MLS Therapy Laser offering fast and effective treatments without compromising patient comfort and safety.

Efficient, Accurate, and Safe

The M-Hi MLS Therapy Laser inherits the mechanisms of actions of the synchronized MLS pulse pattern, evolving its technological features while delivering clinically validated, state-of-the-art protocols.

Applying the most powerful protocols in both point-to-point and scanning techniques, the M-Hi delivers the optimal energy mix to the target tissue while remaining below the threshold for thermal damage.

M-Hi machine

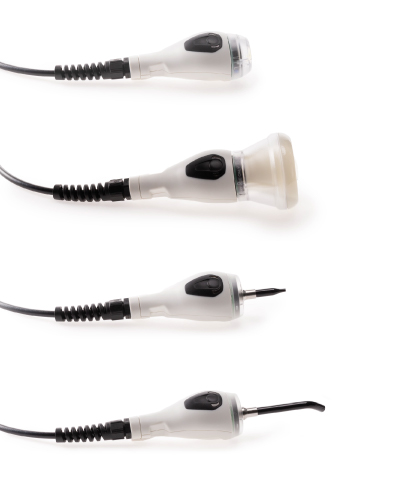

M-Hi Lenses

Interchangeable Lenses

The redesigned handpiece comes equipped with four interchangeable lenses:

  • Ø 2cm lens suitable for most applications.
  • Ø 5cm lens for large treatment areas.
  • Ø 8mm lens for precise targeting and hard-to-reach areas.
  • Ø 4mm lens for laserpuncture.

The intuitive lens connection system automatically adapts treatment parameters according to the attached lens reducing set-up time and improving ease of use.

Features

  • Ergonomic Handpiece:
    • 1 MLS laser source.
    • 4 interchangeable handpiece lenses.
  • Continuous and pulsed MLS modulation.
  • Automatic calculation of the emitted energy according to selected parameters.
  • Variable treatment times from 1” to 30’00” in steps of 1”.
  • Emission intensity can be set from 1% to 100% of the maximum power.
  • 10.1” high-resolution LCD touchscreen display.
  • Predefined programs for 11 body regions.
  • Customize your approach with various treatment modes, including scanning, point-to-point, and trigger points.
  • Create and save additional customized programs.
  • Save patient treatment logs along with the ability to export data via USB.
  • Usage statistics.

Accessories Included

  • 2 Laser Safety Goggles
  • Cart with Storage
  • Soft-sided Carrying Case
  • Shoulder Strap for Portable Use
  • Lens Case (Attachable to the Shoulder Strap)
  • Marketing Kit:
    • Retractable Banner
    • Wall Plaque
    • Patient Brochures & Brochure Holder

Safety Features

  • Laser emission warning light
  • Interlock
  • Acoustic signal adjustable by the operator
  • Passcode to operate the device

Specifications

Laser Type

Class IV – High Power, Non-thermal

Wavelengths

Continuous 808nm
Pulsed 905nm
650 nm Aiming Beam

Peak Power

270W

Pulse Modulation

1 to 2000Hz (1Hz Steps)

Dimensions

M-Hi: 12" w x 6" d x 14"h
Cart: 20" w x 20" d x 37" h

Weight

M-Hi: 9lbs
Cart: 42lbs

Power Supply

Lithium-ion battery
External power supply: 100-240 V AC 50/60 Hz 51-68 VA

FAQs

The M-Hi is a handheld device built around an ergonomic handpiece with four interchangeable lenses, rather than a Robotized ULTRA Head that treats areas autonomously. It's designed for practices that want operator-controlled precision and portability, including a shoulder strap and carrying case, over hands-free robotic scanning.

The 2cm lens suits most general applications, the 5cm lens covers larger treatment areas, the 8mm lens is for precise targeting in hard-to-reach areas, and the 4mm lens is designed for laserpuncture. The handpiece automatically adjusts treatment parameters based on which lens is attached, reducing setup time between different treatment types.

Yes. The M-Hi comes with a cart with storage for in-clinic use, plus a soft-sided carrying case and shoulder strap for portable use, along with an attachable lens case. This makes it suited to practices that need to move the device between rooms or bring it to patients rather than treating in one fixed location.

The M-Hi delivers energy to target tissue while remaining below the threshold for thermal damage, even at its peak power output of 270 Watts using the most powerful point-to-point and scanning protocols. This is made possible through the patented MLS pulse, which delivers energy in a controlled, synchronized manner rather than continuous high-intensity output. This is paired with standard safety features including an emission warning light, interlock, adjustable acoustic signal, and passcode-protected operation.

Yes. The M-Hi saves patient treatment logs and usage statistics, with the ability to export data via USB, which supports practices that need documentation for outcome tracking or record-keeping across treatment sessions.
