The Next Evolution in MLS® Laser Therapy
Robotic M7 MLS® Therapy Laser
As the newest addition to the robotic MLS product family, the M7 transcends previous models with intuitive features that prioritize patient outcomes and clinic workflow.
The Next Evolution in MLS® Laser Therapy
Robotic M7 MLS® Therapy Laser
As the newest addition to the MLS product family, the M7 transcends previous models with intuitive features that prioritize patient outcomes and clinic workflow.

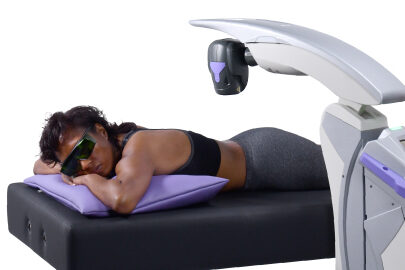

Robotized Treatment
The Robotic ULTRA Head scans the specified treatment area evenly distributing laser energy to improve treatment efficiency, enhance patient outcomes, and boost practice productivity by eliminating the need for a dedicated technician.

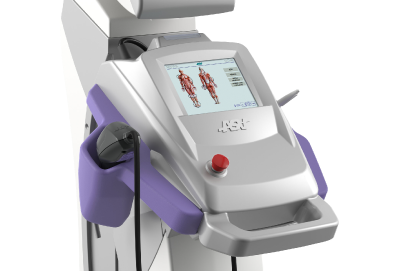

Enhanced Software & User Interface
The M7 MLS Therapy Laser’s enhanced software improves ease-of-use, dose delivery, and treatment consistency.
- Anatomical models and the new Trigger Point Locator guide probe placement to improve treatment accuracy.
- Automated interactions:
- Treatment time and energy density automatically adjust with changes in other treatment parameters to improve dose delivery.
- The improved handpieces automatically tracks the number of treatment areas, time per area, and pauses between areas to improve efficiency.
Two Lasers in One
Switch to the ergonomic handpiece and treat with precision, including trigger points using the on-screen trigger point locator unique to the M7. Use in conjunction with the Robotic ULTRA Head to treat two areas at the same time or target the same area from a different angle, such as a joint.
Features
- Robotized ULTRA Head
- Optical group with 3 MLS laser sources and a 5cm spot size highlighted by high-efficiency LED aiming beam.
- Automatically scan a treatment area (cm2) defined by programmable X and Y axes.
- Specify treatment areas from 1 to 30 to automatically calculate treatment time per area.
- 35 predefined programs categorized by anatomical area.
- Emission intensity can be set at 50 or 100% of the maximum power.

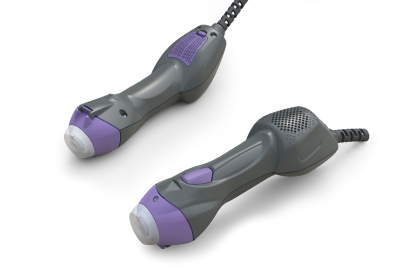

- Ergonomic Handpiece
- 1 MLS laser source with a 2cm spot size highlighted by high-efficiency LED aiming beam.
- Specify treatment points from 1 to 20 to automatically calculate treatment time per point.
- Trigger point locator categorized by anatomical area.
- Emission intensity can be set at 25, 50, 75, or 100% of maximum power.
- Continuous and pulsed MLS modulation.
- Simultaneous management of two independent channels.
- Automatic calculation of the emitted energy, energy density, and treatment time according to set parameters.
- Automated interactions.
- Fixed duty cycle at 50% or variable.
- Create and save up to 30 fully customized programs for both the Robotic ULTRA Head and Handpiece.
Accessories Included
- 2 Laser Safety Goggles
- Touchscreen Stylus
- Patient Positioning Pillows:
- 2 Half-Moon Pillows
- 1 Rectangular Pillow
- 1 Wrist/Ankle Support Pillow
- Marketing Kit:
- Retractable Banner
- Wall Plaque
- Patient Brochures & Brochure Holder
Safety Features
- Laser emission warning light
- Interlock
- Acoustic signal for the beginning and the end of therapy, and for each treatment second
- Passcode to operate the device
Specifications
Laser Type
Class IV – High Power, Non-thermal
Wavelengths
Continuous 808nm
Pulsed 905nm
650 nm Aiming Beam
Peak Power
50W
Pulse Modulation
1 and 2000Hz (1Hz Steps)
Dimensions
Minimum: 28.5” w x 31.5” d x 43.5” h
Maximum: 28.5” w x 41” d x 61.5” h
Weight
94.7 lbs
Power Supply
100 and 240V - 50/60Hz 85-110VA
