Portable and Versatile

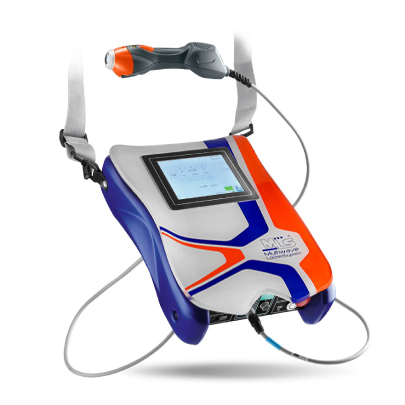

Mphi75 MLS® Therapy Laser
Combining flexibility with a large targeted treatment area, the Mphi75 has been designed to offer unique advanced functionality and portability.
Portable and Versatile
Mphi75 MLS® Therapy Laser
Combining flexibility with a large targeted treatment area, the Mphi75 has been designed to offer unique advanced functionality and portability.
The Best of Both Worlds
The Mphi75 MLS Therapy Laser combines the hands-free ULTRA Head with the ergonomic handpiece in a versatile and portable unit ideal for medical professionals looking to elevate their approach to pain management care while maximizing effectiveness, efficiency, and precision.
Available Anywhere
The MLS Therapy Laser emission system
has been adapted into this portable device to expand treatment opportunities.
The Mphi75 is an ideal solution for medical professionals who need more versatility from their therapy laser in order to address a wide range of patient care scenarios.
Simply detach the laser from the cart to easily transport the Mphi75 between treatment rooms, clinic locations, and other patient treatment facilities.
Hands-Free Treatments
The articulated arm holds the ULTRA Head in a fixed position above at the treatment area allowing the operator to administer laser therapy treatments hands-free.
Two Lasers in One
Switch to the ergonomic handpiece and treat with precision, including trigger points. Use in conjunction with the ULTRA Head to treat two areas at the same time or target the same area from a different angle, such as a joint.
Features

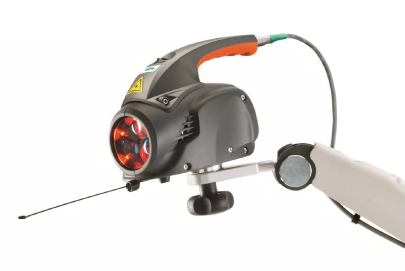

- Hands-Free ULTRA Head
- Optical group with 3 MLS laser sources and a 5cm spot size highlighted by high-efficiency LED aiming beam.
- Treat wide tissue areas more efficiently with a large spot size.
- Emission intensity can be set at 50 or 100% of the maximum power.

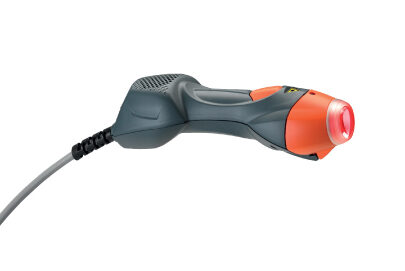

- Ergonomic Handpiece
- 1 MLS laser source with a 2cm spot size highlighted by high-efficiency LED aiming beam.
- Emission intensity can be set at 25%, 50%, 75%, or 100% of maximum power.
- Continuous and pulsed MLS modulation.
- Simultaneous management of two independent channels.
- Automatic calculation of the emitted energy according to set parameters.
- Fixed duty cycle at 50% or variable.
- Create and save up to 30 fully customized programs for both the ULTRA Head and Handpiece.
Accessories Included
- 2 Laser Safety Goggles
- Touchscreen Stylus
- Articulated ULTRA Head Applicator
- Carrying Case
- Cart with built-in handpiece holder and two storage compartments
- Marketing Kit:
- Retractable Banner
- Wall Plaque
- Patient Brochures & Brochure Holder
Safety Features
- Laser emission warning light
- Interlock
- Acoustic signal for the beginning and the end of therapy, and for each treatment second
- Passcode to operate the device
Specifications
Laser Type
Class IV – High Power, Non-thermal
Wavelengths
Continuous 808nm
Pulsed 905nm
650 nm Aiming Beam
Peak Power
75W
Pulse Modulation
1 and 2000Hz (1Hz Steps)
Dimensions
Mphi75: 11” w x 14” d x 4” h
Cart: 21” w x 25” d x 33.5” h
Weight
Mphi75: 6.6 lbs.
Cart: 55.1 lbs
Power Supply
Lithium polymer battery
18 V DC 50VA external power supply
